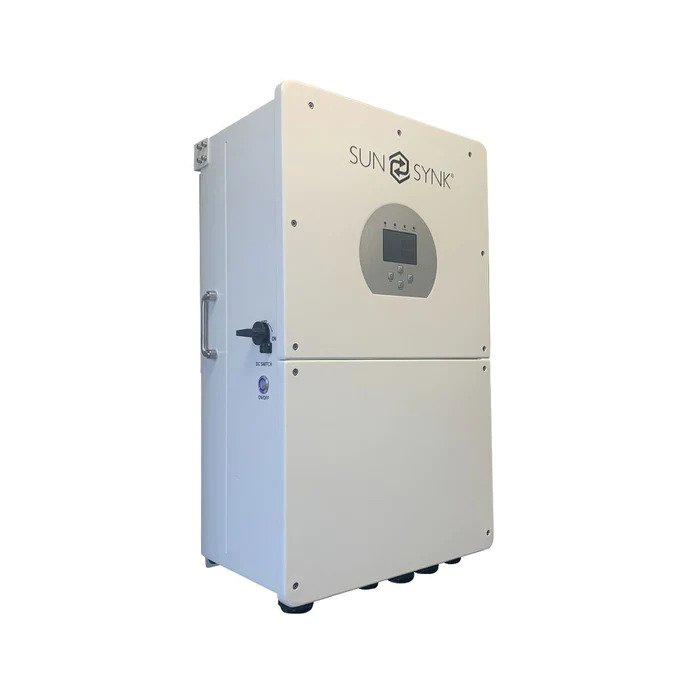

Sunsynk 16kW, 48Vdc Single Phase Hybrid Inverter with WIFI included
The Sunsynk MAX is a low voltage (48V) hybrid inverter suitable for off-grid, grid support, back-up and self-consumption PV systems. Moreover, the inverter can also be used in both three-phase and single phase parallel applications.
Features:
- The largest single-phase hybrid Inverter on the market.
- A total of 15 x inverters can be connected in a three-phase configuration (five units per phase) – giving a maximum power output of 240kW.
- 3 x inverters can be connected in a single-phase configuration giving a total power of 48kW.
- Contains 3 x MPPTs to allow for flexible PV array designs and improved efficiency.
- Programmable multiple operation modes: on-grid/off-grid & UPS.
- IP65 protection rating – suitable for most outdoor installations.
- Wi-Fi dongle as standard – enabling remote monitoring via the Sunsynk cloud
- Compatible with leading lithium battery brands such as Hubble Lithium, Pylontech LV, Freedomwon and Kodak (BL3.6).
Important
The Sunsynk 16kW does not have an ATS relay coil/switch.
Dimensions – L 281mm X W 422mm X H 702mm.
Weight – 56 kg
